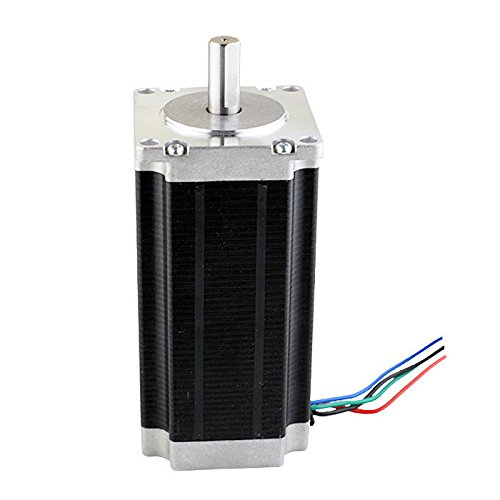

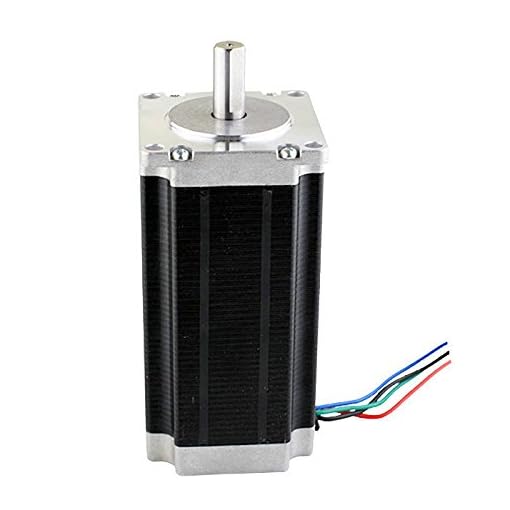

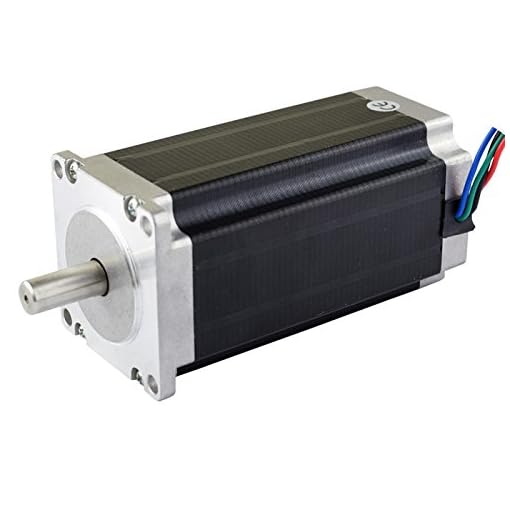

STEPPERONLINE High Torque Nema 23 CNC Stepper Motor 114mm 425oz.in/3Nm CNC Mill Lathe Router

That is the most powerful style for Nema 23 stepper motor, it with 1.8 deg. step Attitude (2 hundred steps/revolution).

Each Section attracts 4.2A, making an allowance for a Protecting torque of 3.0Nm(425oz.in).

Electrical Specification:

* Producer Phase Quantity: 23HS45-4204S

* Motor Sort: Bipolar Stepper

* Step Attitude: 1.8 deg.

* Protecting Torque: 3.0Nm(425oz.in)

* Rated Present/Section: 4.2A

* Section Resistance: 0.9ohms

* Inductance: 3.8mH+/-20%(1KHz)

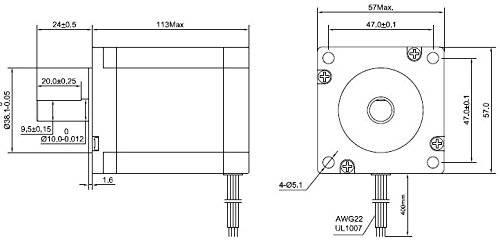

Physical Specification:

* Frame Dimension: 57 x 57mm

* Frame Period: 113mm

* Shaft Diameter: 10mm

* Shaft Period: 24mm

* D-reduce Period: 20mm

* Collection of Leads: 4

* Lead Period: 400mm

* Weight: 1.8kg

Connection:

Black(A+), Inexperienced(A-), Crimson(B+), Blue(B-)

Warning:

Ensure that the motor connect with a continuing Present or chopper pressure controller ahead of you check motor.

Connecting the motor right away to an influence provide will damage the motor.
Very Massive Torque
3Nm(425oz.in) Protecting torque
NEMA 23 bipolar 2.24″x2.24″x4.forty five” four-cord
1.8 deg. step Attitude(2 hundred steps/rev)
Rated Present 4.2A & resistance 0.9ohms
