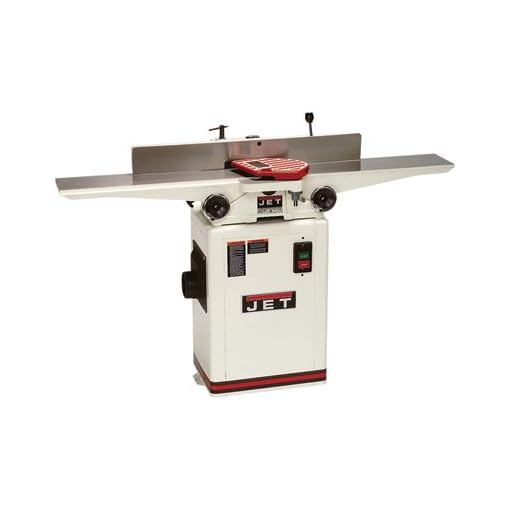

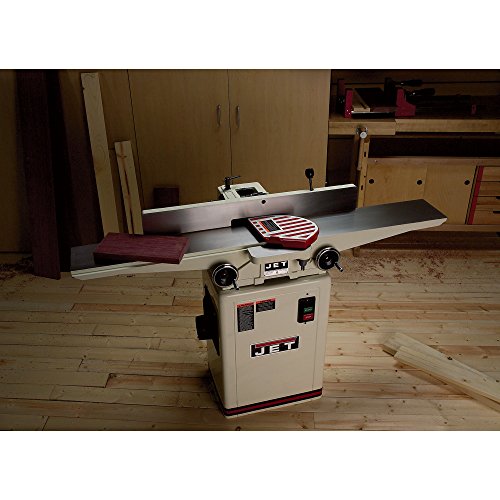

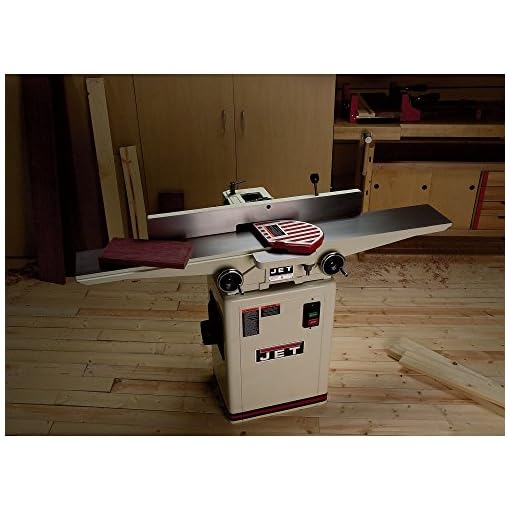

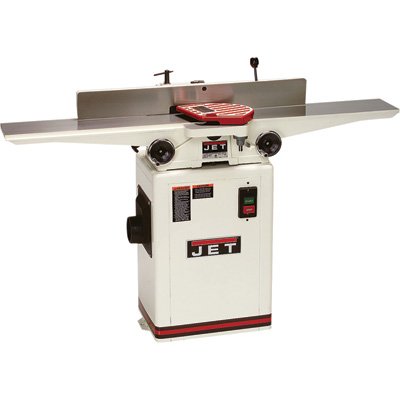

JET 6-Inch Long Bed Jointer, Straight Knife Cutterhead, 1 HP, 115/230V 1Ph (Model JJ-6CSDX)

The JET 6in. Long Bed Jointer offers one of the crucial longest working surfaces in its class. Three high speed steel quick-change knives provide rapid cutting and an outstanding finish without the desire for a knife-setting gauge. An exclusive auto-set quick-change knife system means that you can replace or change all three blades in a fraction of the time other machines take. A powerful 1 HP motor easily handles the toughest jointing tasks. Case Included: No, Tool Length (in.): 56, Cutting Width (in.): 6 1/6, Amps: 13, Cutting Depth (in.): 1/2, Cuts Per Minute (CPM): 6,000
Ideal for home shop use, the JET 708457DXK JJ-6CSDX 6-Inch 1 HP Jointer with Quick-Set Knive System squares your wood without fail. Offering one of the crucial longest working surfaces in its class, and featuring an exclusive auto-set quick change knife system that permits you to quickly replace or change all three blades, this powerful jointer helps you build doors, tabletops, and other furniture pieces with ease.

.caption circle of relatives: Verdana, Helvetica neue, Arial, serif;font-size: 10px;font-weight: bold;font-style: italic;}ul.indent list-style: inside disc;text-indent: 20px;table.callout circle of relatives: Verdana, Helvetica, Arial, serif;margin: 10px;width: 250;}td.callout3-c26 height: 100 percent;background: url(‘https://images-na.ssl-images-amazon.com/images/G/01/th/content_26/Q1_2009/c26-callout3.png’) repeat-y;border-left: 0px solid #999999;border-right: 1px solid #999999;padding: 10px;width: 250px;ul.callout list-style: inside disc;text-indent: -12px;font-size: 12px;line-height: 1.5em;h5.callout text-align: center;img.withlink border:1px black solid;a.nodecoration text-decoration: none

The JET JJ-6CSDX 6-Inch Jointer offers: A powerful 1 HP motor for tough jointing tasks Three high-speed steel quick change knives for rapid cutting and an outstanding finish Extra-long heavy-duty cast iron infeed and outfeed tables A built-in dust chute with four-inch port

Up-front controls can help you care for accuracy.

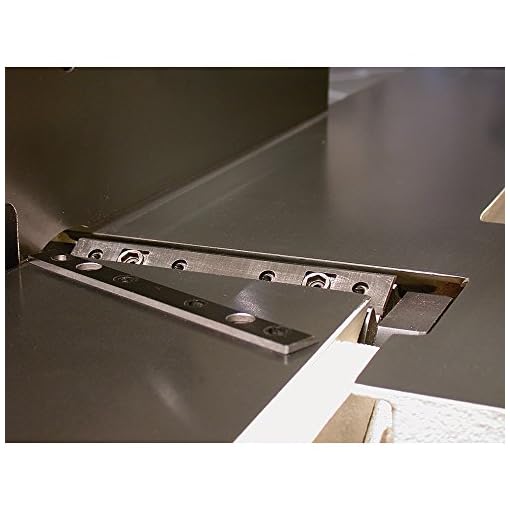

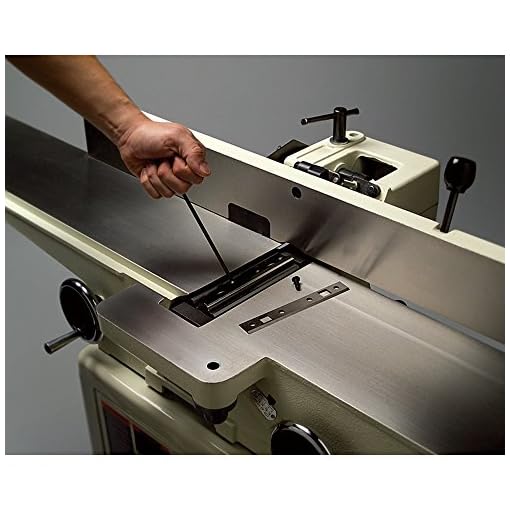

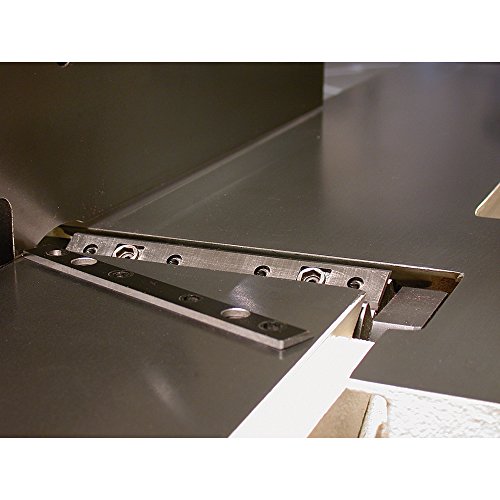

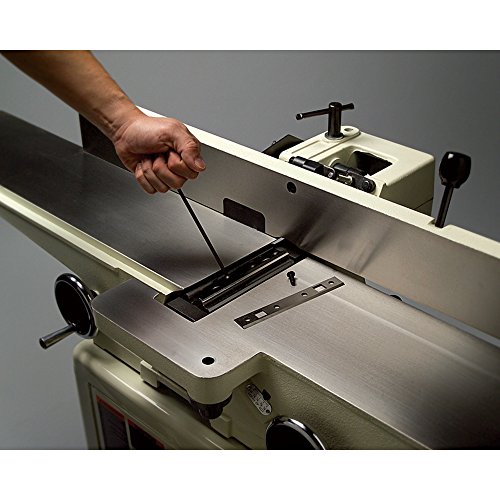

The exclusive auto-set quick change knife system means that you can replace or change all three blades quickly and easily for improved workflow. View larger.

The JJ-6CSDX is a convenient, dependable, and versatile jointer. View full diagram.

Center fence controls allow quick adjustments.

All-Enclosed Steel Base Cabinet for Stability
The JJ-6CSDX comes with an all-steel enclosed base cabinet. An integral tab at every end of the cabinet bottom makes it easy to protected the jointer to the floor every time a suitable surface is to be had. This cabinet also provides a stable platform and puts the table surface at a comfortable 31-1/4 inches above the floor.

Fan-Cooled Motor for Consistent Performance
The base cabinet also houses the 1 HP, 1 phase 115/230-volt TEFC (totally enclosed fan cooled) motor (pre-wired 115-volt) and wiring to assist isolate the ones components from the dust-prone jointer environment. A big door at the rear of the base cabinet provides easy get right of entry to to the motor, which spins the JJ-6CSDX cutterheads at a very consistent 6000 RPM for a desirable balance between speedy material removal and a silky-smooth surface at the wood.

Long Cast-Iron Table for Better Accuracy
The JET JJ-6CSDX includes a long, cast-iron table with a smooth, flat precision-machined finish that assists in keeping the wood sliding predictably whilst ensuring accuracy. Measuring 55-3/4 x 7-3/8 inches, this table makes straightening large project pieces accurate and reliable. Moreover, the total cut capacity of 6-1/16 x 1/2 inches (WxD) can stay alongside of even essentially the most active of home wood shops. In the end, the outfeed tables have built-in 1/2-inch rabbeting ledges that add a bit of more versatility to the jointer.

Handwheels for Easy Adjustments; Automatic Limiter for Safety
Both the infeed and outfeed tables feature Jet’s exclusive front-mounted handwheels to make table height adjustments easy and accurate. And for safety and protection, an automatic limiter at the infeed table prevents the operator from by chance taking overly aggressive cuts deeper than 1/8 inch. For added convenience, the depth limiter may also be manually overridden easily but requires the operator to intentionally release it.

Steel Cutterhead with Three Knives for Long Life
The JJ-6CSDX uses a precision-machined steel cutterhead fitted with three high quality knives measuring 6 1/6 x 3/4 x 5/64 inches (WxLxD). These knives have two cutting edges that effectively double their life, and they’re aligned the use of Jet’s exclusive auto quick-set system. A pair of cams at every knife in fact adjusts the knife height. Once set, the cams are locked in position and the knives may also be reversed or replaced with no need to reset the peak, getting rid of the desire for a knife-setting gauge.

Additionally, precision-machined pockets within the knives will let you slip them onto the cams, thus retaining the setting. The openings within the knives are also wide enough that individual knives may also be offset to catch up on a nick, further extending the life of every knife edge.

User-Friendly Features for Easy, Pleasant Operation
Designed to be a very simple-to-operate, helpful addition in your shop, the JJ-6CSDX includes a two-way tilting fence with positive stops at 45 and 90 degrees to care for bevel operations, in addition to industrial push-button controls conveniently placed for simple get right of entry to. In the end, a built-in dust chute with four-inch port connects in your collection system for efficient dust and chip disposal.

The JJ-6CSDX measures 22 x 37.5 x 56 inches (WxHxD), weighs 237 pounds, and is backed by a five-year warranty.

About JET: A History of Sharing New, Feature-Wealthy Products
Opened in 1958 after the founder of the company, Leslie P. Sussman, took the primary Boeing Jet Airplane go back and forth from Seattle, Washington to Japan, JET started as a small dealer that sold air hoists and trolleys out of a single hardware store in Seattle. Through the years, JET has carried the whole lot from snowmobiles, transmitter radios, and forklifts to nylon stockings, but by the early 1970s, metalworking had develop into the base in their business line. And by the 1980s, JET had expanded into the realm of woodworking. Lately, you can find that JET offers a variety of popular woodworking tools which can be backed with very best-in-class features and superb service.

What’s within the Box
One stand with motor, one stand cover with mounting hardware, one dust chute with mounting hardware, one bed assembly, one fence assembly, one cutterhead guard, one belt guard, one V-belt, four 1/4-20 x 1/2 pan head screws, four 1/4 flat washers, one lock care for, flat washing machine and lock nut for the fence, one fence care for, three lock bolts, three 3/8-inch lock washers, two handwheel assemblies, you’ll be able to of touch-up paint, manual, warranty card, and two push blocks.

Extra-Long cast iron table for better keep an eye on and more accuracy
1/2-Inch Rabbeting Capacity; 33-1/8-Inch long fence with 45 and 90-Degree stops
Powerful 1-horsepower motor;-industrial push button controls
3 high-speed steel knives-Inch the cutter head; Quick Set Knives provide easy changing
4-Inch dust port for efficient dust and chip disposal
