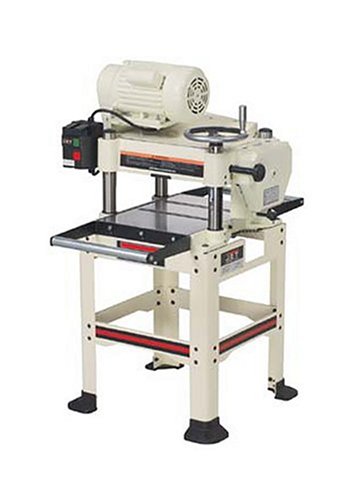

JET 708531 JWP-16OS 16-Inch 3-Horsepower Open Stand Planer, 230-Volt 1-Phase

708531 Options: -Cutter head with three prime speed steel knives locks firmly in place to stop movement at the same time as in use.-Two speed equipment box with automated chain tensioner means that you can alter the feed Charge to fulfill your wishes.-Huge, cast-iron, precision floor table for actual work piece reinforce.-Surge in feed and out feed rollers give your work piece Most reinforce throughout making plans operations.-Huge hand wheel with sure equipment drive lets in for speedy and appropriately table changes.-Exclusive angled four”” Mud port helps to keep your Mud hose out of the best way.-Heavy duty steel wide base open stand with casting pads supplies reinforce and stability of the device throughout use.-Magnetic controls supply long lifestyles and reliability.-Most making plans: sixteen””.-Cutter head speed: 4500 RPM.-Cuts Per Minute: 13500.-Feed Charge: 16 and 20 FPM.-collection of Knives: 3.-Mud Port diameter: four””.-Blade size: 16.thirteen”” x 1”” x.thirteen””. Building: -Heavy duty cast-iron and steel Building for additonal strength and sturdiness. Specifications: -Robust 3 HP TEFC induction motor with three V belt transmission for smooth and consistent power. Dimensions: -Dimensions: 30”” H x 22”” W x 32”” D. Assortment: -Mud Assortment minimum cfm required: 400 cu.ft/min.
This new design sixteen-inch woodworking planer from Jet is powered by way of a 3 horsepower, completely enclosed fan-cooled motor with a magnetic switch. Power is dropped at the 3-blade, 2-7/8-inch cutterhead by way of three V-belts. The JWP-16OS unit Options each solid iron and steel Building for stability and sturdiness, and there are two feed rates — 16 and 20 feet per minute — plus serrated infeed rollers and smooth outfeed rollers that come usual. An angled four-inch Mud port positions the hose away from work house and gives environment friendly chip and dirt Assortment. Do not fail to remember the optional mobile base to transport this unit around, order stock number 708119.

Key Technical Specs:

• Most Planing Width: 16 inches
• Most Planing Thickness: 6 inches
• Most depth of cut: 3/sixteen inch
• Most full width depth of cut: 1/8 inch
• Most opening: 6-3/8 x 16 inches
• Minimum planing duration: 6 inches
• Cutterhead speed: 4,500 rpm
• Cuts per minute: 13,500
• Cutterhead diameter: 2-7/8 inches
• Planer blade size: sixteen-1/8 by way of 1 by way of 1/8 inches

sixteen-inch woodworking planer that has an impressive 3 hp motor with a magnetic switch
Surge infeed and outfeed rollers supply Most workpiece reinforce at the same time as planing
3 V-belts switch Most power to the cutterhead; cast-iron and steel Building
2-speed gearbox Options an automated chain tensioner
Weighs 396 pounds; 1-year guaranty
