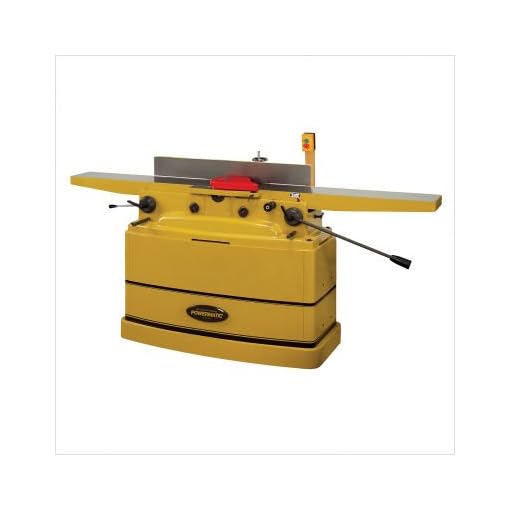

Powermatic 8-Inch Parallelogram Jointer, Helical Cutterhead, 2 HP, 1Ph 230V (PJ-882HH)

1610082 Features: -8” parallelogram jointer.-PJ-882HH.-With helical cutterhead. Assembly Instructions: -Assembly required. Dimensions: -Dimensions: 44” H x 28” W x 84” D.
The Powermatic PJ-882HH Eight-Inch Parallelogram Jointer with Helical Cutterhead offers performance and worth. This jointer supplies optimum accuracy and capacity by featuring a helical design cutterhead with 54 four-sided knife inserts, and a parallelogram design that helps to keep the table in close proximity to the cutterhead for improved finish, fast depth-of-cut adjustment, and a parallel table.

The PJ-882HH 8″ Parallelogram Jointer with Helical Cutterhead At a Glance: Parallelogram design maintains table parallelism and eases table movement Extra-long 82″ bed for better work support 1/8″ depth-of-cut limiter for speedy table positioning No-mar fence insert protects table Handwheel with patented worm gear system for precise fence tilting

The helical cutterhead with knife inserts supplies smoother, quieter cutting. View larger.

Fence controls are center mounted for convenience.

The PJ-882HH’s prime-mount power switch is straightforward to get right of entry to.

Sturdy and Strong
Built from heavy-duty iron castings for long-term durability, the PJ-882HH weighs 744 pounds. The entire, eight-inch cut width and 82-inch overall bed length–in addition to cutting edge single handwheel that tilts the fence out and in with certain stops at +/- 45 and 90 degrees–make straightening the most important project pieces exceptionally accurate. And this jointer supplies adjustable parallelogram tables, simple knife setting, and a 1/8-inch depth-of-cut limiter for speedy table positioning.

Powerful Two-Horsepower Motor
The PJ-882HH has a two-horsepower motor housed within the heavy steel stand, providing a lot of power and stability for essentially the most demanding jobs. An absolutely welded, all-steel base cabinet supplies a high-quality platform for the PJ-882HH, and at 20-1/2 x 20-1/2 x 15 inches (W x H x D), it puts the bed at a at ease 31-5/16 inches above the ground.

The base cabinet houses the motor and its adjustable mount for altering belt tension when essential, and a rear door for simple get right of entry to to the motor and its mount. An on/off switch is conveniently mounted to a mast, even as an efficient dust evacuation chute has its outlet located low at the base, keeping the hose flat at the floor.

Helical Cutterhead
The jointer has a helical cutterhead that uses individual solid carbide cutters–every with four indexed cutting edges that may be rotated must the primary edge change into dull.

This design is efficacious since the cutterhead’s carbide inserts are arranged in spiral-formed rows, with a four-inch radius ground into them. They are also mounted in order that they manner the picket at a 14-degree angle, which creates a real shear cut that gets rid of much of the affect that ends up in fiber disturbance. Also, the sturdiness of the carbide combined with the low-affect, shear cutting action mean the inserts have a longer long life, some distance exceeding that of heterosexual blades.

Optimum Accuracy
Because accuracy is determined by the very best alignment of the infeed and outfeed tables, every corner has an adjustable cam for correcting any coplanar misalignments that can happen over the years. Also, the mechanism that moves the tables up and down helps to keep them on the subject of the cutterhead, which ends up in cleaner cuts and a fantastic finish at the picket.

Precision Fence
For reliable performance, the PJ-882HH’s fence has an insert that stops scratching of the table when it is moved, and the operating mechanism lets in precise bevel setting and ultra-stability when locked. A handwheel with patented worm gear system ensures precise fence tilting.

The PJ-882HH is subsidized by a five-year warranty.

What’s within the Box
PJ-882HH Jointer; one cutterhead guard; two push blocks; one four-millimeter hex wrench; one five-millimeter hex wrench; two star-point screwdrivers; 10 knife insert screws; five knife inserts; owner’s manual; and warranty card.

Helical cutterhead with knife inserts supplies smoother, quieter cutting and finer finish than conventional systems
Extra long 82-inch table for expanded work give a boost to
