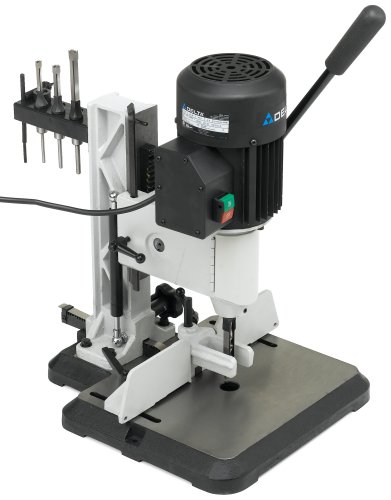

Delta 14-651 1/2″ Mortiser, Gray

Simple to set up and perform, the Delta 14-651 1/2-Horsepower Mortiser is specially designed for the pro user and features a multi-position hand lever and rotating mortising head for difficult off-table projects. Able to punching smooth mortises in a variety of stock–together with hardwoods–this Skilled bench mortising machine is a will have to-have addition to any shop.

The Delta 14-651 1/2-Horsepower Mortiser At a Look: 1/2-HP motor generates 1725 RPM 3/8-inch-capacity drill chuck and key Adjustable rack-and-pinion fence Multi-position feed lever

Multi-position hand lever supplies the additional torque had to mortise particularly exhausting woods.

Heavy-duty solid iron base supplies stability and keep an eye on. View larger

Adjustable Height and Rotating Head Supply Versatility
Setting up the 14-651 is a breeze way to options such as the straightforward-get right of entry to 3/8-inch-capacity drill chuck and adjustable rack-and-pinion fence. A height attachment will increase the mortiser’s capacity by 1-3/4 inch, and if you happen to still want more height, you’ll be able to merely flip the 14-651’s head 180 degrees to mortise off-table.

Engaging and freeing by the use of an effective rack-and-pinion system, the 14-651’s head options an adjustable dovetail possibility for intricate jobs. The lever locks down and is long enough to supply that further torque you wish to have to mortise particularly exhausting woods.

Robust Motor Promises Skilled Results
Powered by a 1/2-horsepower, 120-volt, 60-hertz, single-segment induction motor, the 14-651 produces smooth-sided, burn-feed results. The mortiser features a feed speed of 1,725 RPM and a multi-position feed lever for matching the proper position to the job.

Additionally, the adjustable depth prevent locks down, so you should not have to fret about cutting too deep, and a chuck key/hex wrench simplifies bit and chisel converting.

Stable and Strong for Tricky Jobs
Stable and durable, this machine measures 22.4 x 18.6 x 16.4 inches (WxHxD), weighs 77 pounds, and features a heavy-duty 16-3/4-inch by thirteen-1/2-inch solid iron base with center thru hole, in addition to a two-piece safety fence.

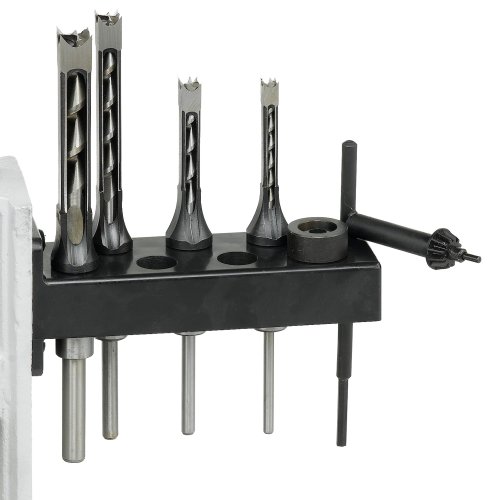

The 14-651 arrives with a device-and-chisel tray, a multi-position feed level, and a gas-crammed head stabilizer for smooth, steady operation. Also, four mortise chisels and bits in 1/4, five/16, 3/8, and 1/2-inch increments are included, so you have got the whole thing you wish to have to get began.

What’s within the Box
Mortiser; 3/8-inch-capacity chuck and key; four mortising chisels and bits; tool-and-chisel holder; and riser block.

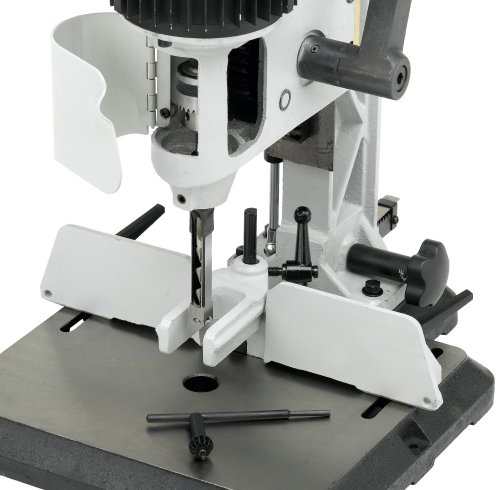

Simple and open get right of entry to to drill chuck for bit converting

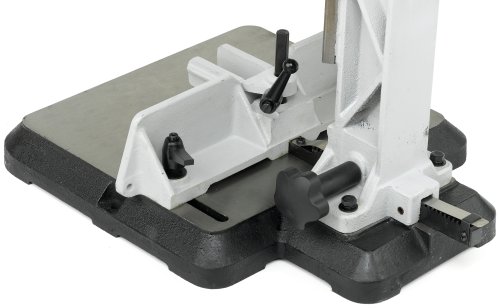

Massive solid iron base with center thru hole
Adjustable rack and pinion fence and rack and pinion head raising and lowering
Mortising head column may also be turned 180 degree and remounted for off-table mortising
Adjustable fence and hold down; Adjustable dovetail method on mortising head
